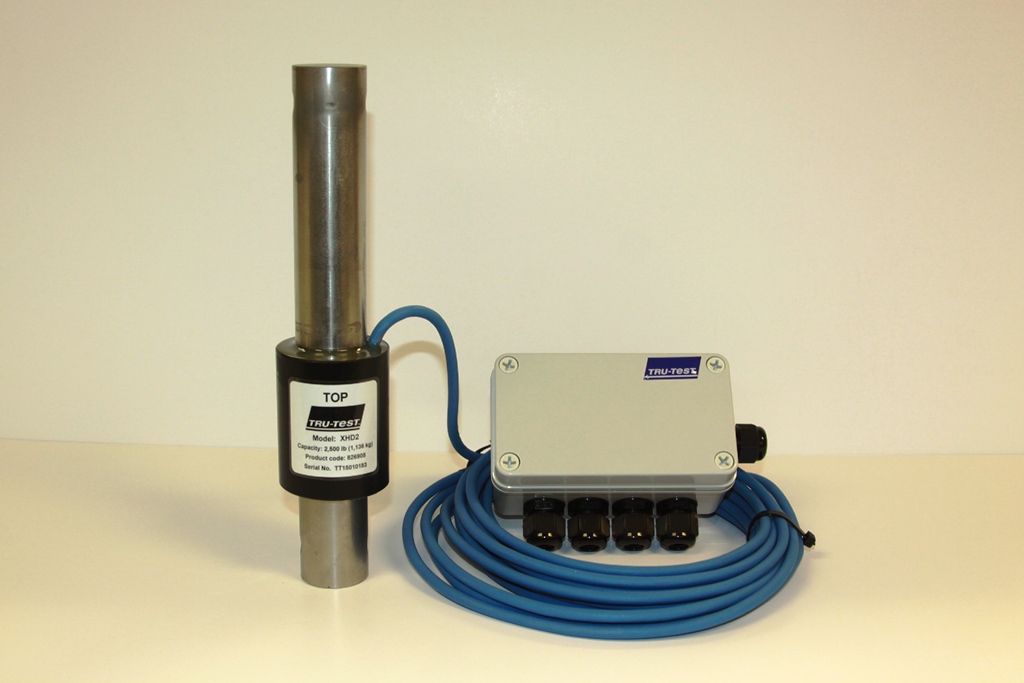

The XHD2 load cell system is ideal for permanent installations under large cattle crushes/chutes where there is high usage. The system includes four 2,500 lb (1,136 kg) load cells with a total capacity of 10,000 lb (4,500 kg).
Designed for harsh environments the system is protected to prevent moisture and corrosion damage.
Rugged – strong and durable construction for extreme installations
Plug and play – factory calibrated with most Tru-Test scale indicators; span calibration may be required on older indicator models*
Cable connectors – wire joiners inside the Junction Box allow good wire contact and quick setup
Plated and sealed load cell – protects against moisture and corrosion damage in harsh environments.
Mounting brackets – optional mounting bracket allows for fast and easy installation with various types of equipment (i.e. cattle chutes, large platforms)
*Calibration. XHD2 Load Cells are factory calibrated to Tru-Test indicators when four cells are connected together. In applications that require only two cells span calibration is required.
|
